Why do xanthan gum and konjac gum easily form lumps ("fish eyes") during dissolution, and what is the optimal industrial dispersion process?

Why do xanthan gum and konjac gum easily form lumps ("fish eyes") during dissolution, and what is the optimal industrial dispersion process?

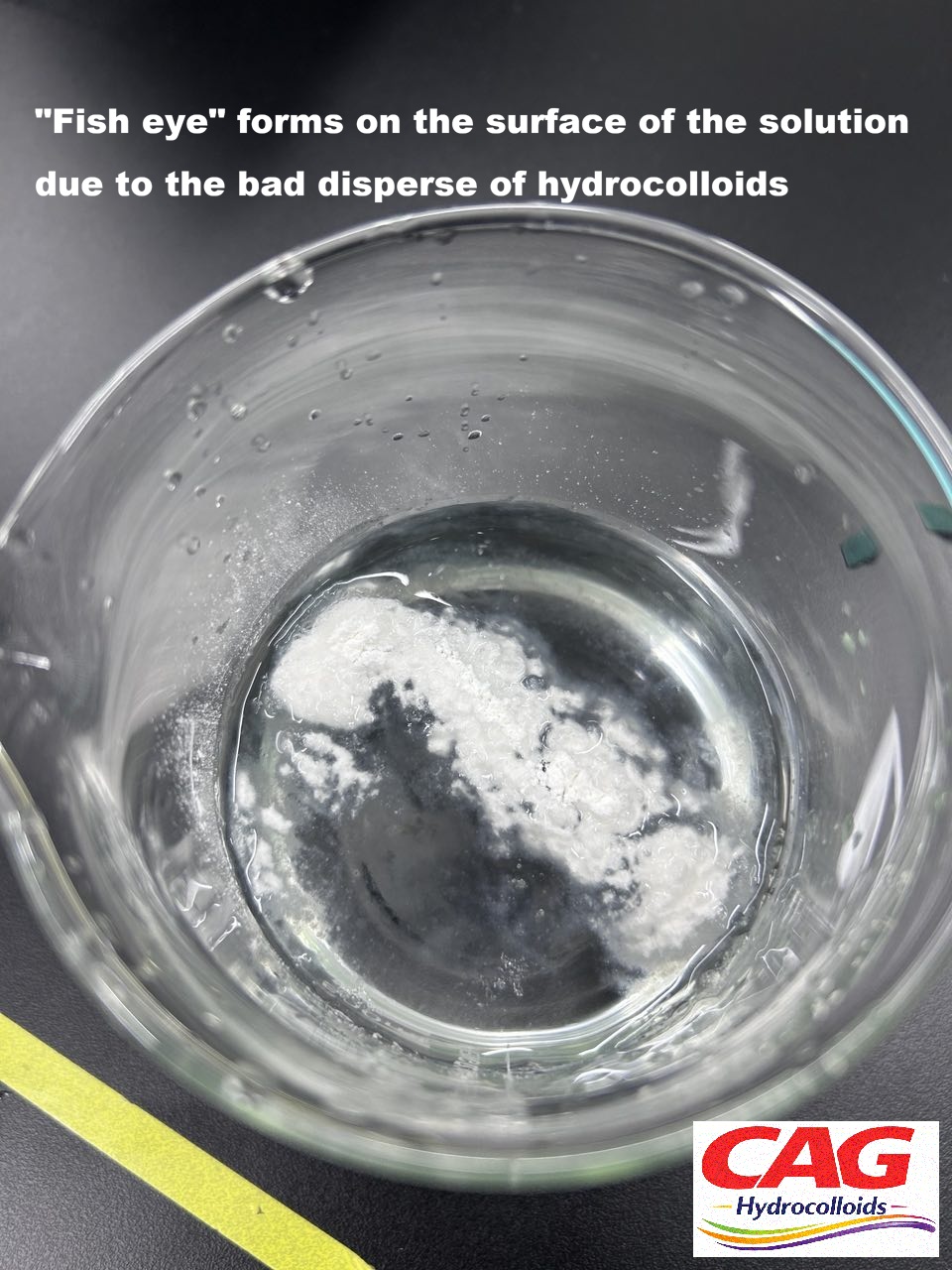

Reasons Why Xanthan Gum and Konjac Gum Easily Form Lumps ("Fish Eyes")

Both of these hydrocolloids are high-molecular-weight polysaccharides, and the mechanism behind the formation of "fish eyes" (lumps with a wet exterior and a dry interior) is as follows:

Gum Type	Molecular Characteristics	Direct Cause of Lump Formation
Xanthan Gum	Highly branched helical structure, strongly hydrophilic surface	Instant formation of a high-viscosity gel layer upon contact with water, blocking water penetration into the particle interior
Konjac Gum	Extremely high molecular weight (>1 million), β-mannan backbone	Rapid bonding of water molecules with hydroxyl groups, forming a dense mucosal layer on the surface while the interior remains dry powder

Common Mechanism:

Imbalanced Hydration Rate: Surface hydration rate >> water penetration rate
Viscosity Barrier: Outer layer swells rapidly, causing a sharp increase in viscosity and forming a "gum shell"
Capillary Blockage: Interparticle gaps are clogged by high-viscosity gum, preventing further water ingress

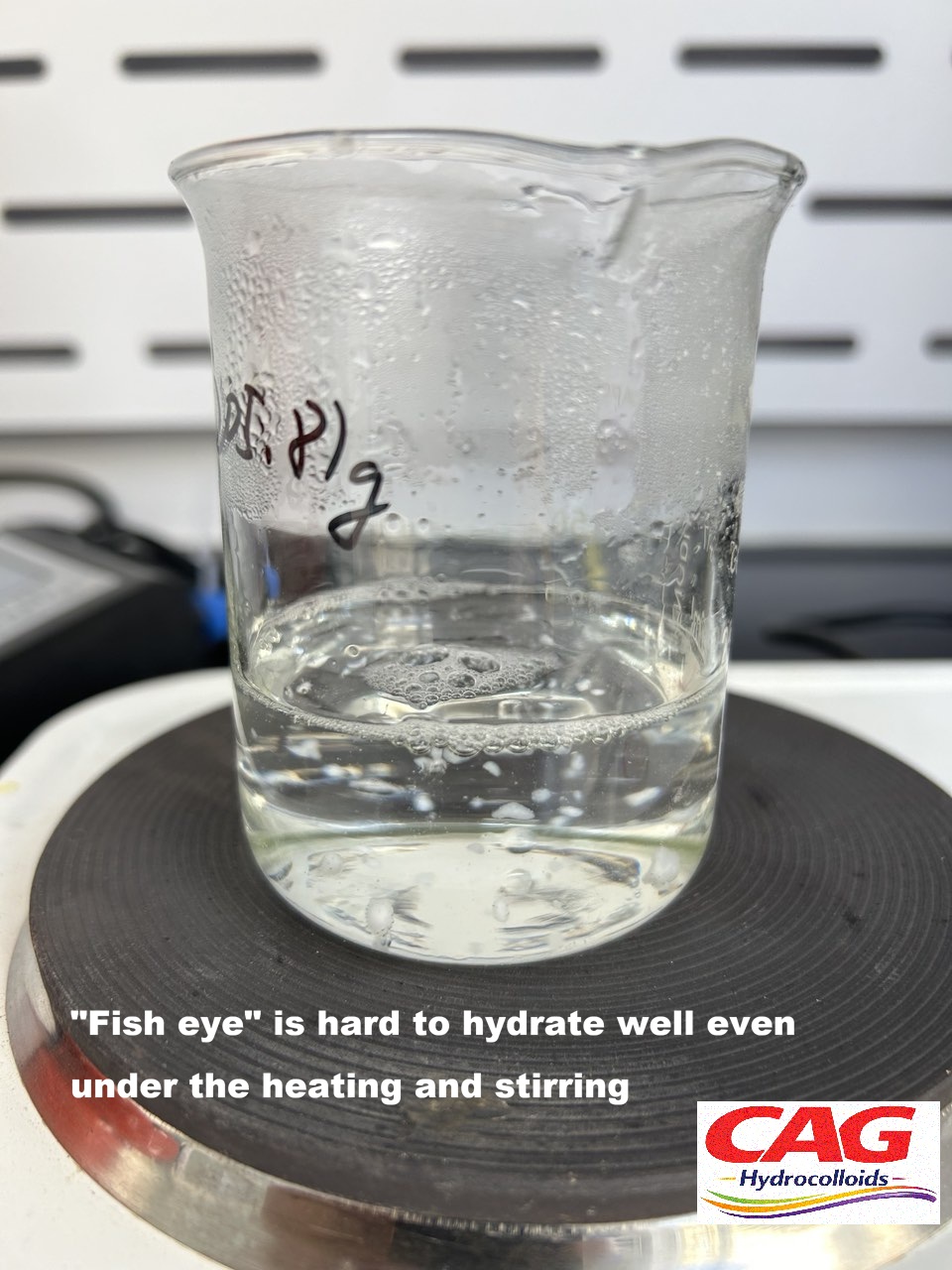

Optimal Industrial Dispersion Process (Core Anti-Lumping Technology)

1. Mechanical Dispersion Method (Most Commonly Used)

High-Shear Dispersion: Use a rotor-stator high-shear emulsifier (speed ≥ 3000 rpm) to create turbulence as the gum is added, physically breaking the gum shell.
Jet Dispersion: Inject dry gum into a high-speed water flow (water pressure ≥ 3 bar) through a Venturi ejector for instantaneous separation.

2. Physical Isolation Method (Compatible with Formulations)

Oil-Phase Pre-Dispersion: Pre-mix the gum with a non-polar solvent (e.g., vegetable oil, glycerol) at a 1:3 ratio to form a paste, then slowly add to the aqueous phase.
Sugar/Salt Dry Blending: Dry-blend with at least 5 times the amount of sugar/salt, using the crystals to separate the gum particles (sugar dissolves faster than the gum hydrates).

3. Optimized Process Parameters

Key Parameter	Recommended Conditions for Xanthan Gum	Recommended Conditions for Konjac Gum
Water Temperature	Room temperature (high temperatures accelerate surface gelation)	40–50°C (moderate heating reduces viscosity)
Initial Concentration	≤1%	≤0.5%
Stirring Timing	Start high-speed stirring simultaneously with gum addition	Start medium- to high-speed stirring before gum addition
Dissolution Time	20–30 minutes (at room temperature)	40–60 minutes (requires subsequent heating to 85°C for full activation)

4. Specialized Equipment Solutions

Vacuum Dispersion System: Add gum under vacuum to eliminate floating lumps caused by air bubble adhesion.
In-Line Homogenization System: A pipeline homogenizer (pressure ≥ 150 bar) can forcibly break down micro-aggregates.

Process Selection for Different Applications

Production Scenario	Recommended Process Combination (in order of priority)
Sauces/Beverages	Sugar dry blending + high-shear dispersion (prepare a mother liquor in advance)
Meat Products/Simulated Foods	Oil-phase pre-dispersion + vacuum stirring
Large-Scale Continuous Production	Venturi jet dispersion + in-line homogenization
Laboratory Trials	Pre-mix with ethanol before adding water (ethanol evaporates later)

Methods to Verify Dispersion Effectiveness

Polarized Light Detection: Examine a small sample under a microscope; completely dissolved solutions should show no birefringent particles.
Viscosity Curve Monitoring: Use a rheometer. The viscosity-time curve of a well-dispersed sample should rise smoothly without abrupt steps (indicating no sudden lump disintegration).

Key Principle: Ensure thorough separation of gum particles through mechanical or physical means before water molecules come into contact with them. Any delay in stirring or static hydration will lead to irreversible "fish eye" formation.

Need support on product development?
