FAQs

Interpret the documented effects of calcium ion concentration on the textural properties of a 0.25% Gelrite gel. What is the practical implication of the observed "optimum" ion range?

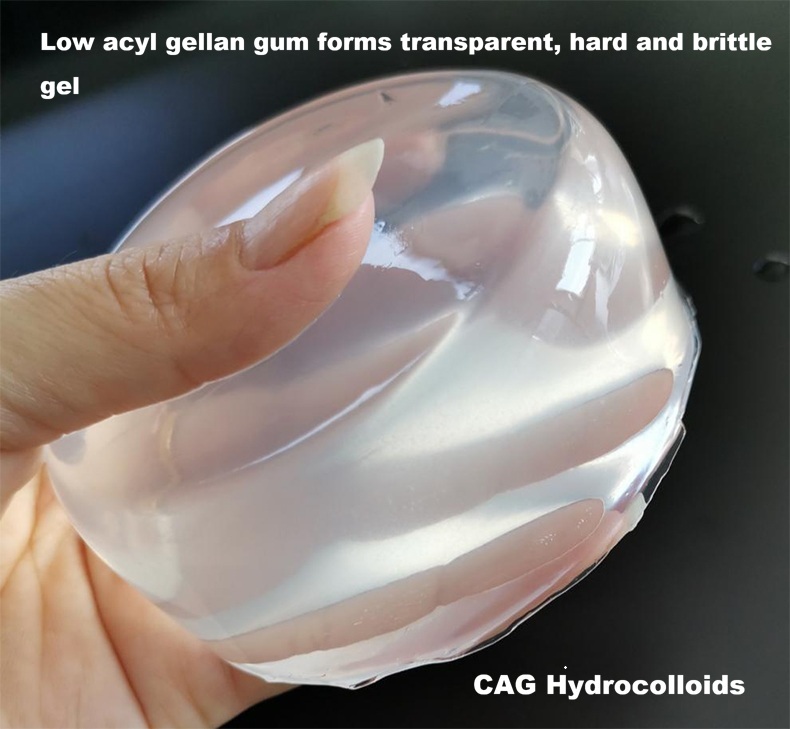

Experimental data on 0.25% Gelrite gels reveals a sophisticated, non-linear relationship with calcium ion concentration. Key parameters respond differently:

• Hardness and Modulus: Both increase sharply with initial Ca²⁺ addition, reach a distinct maximum plateau, and then gradually decline with further ion increase. For modulus, this optimal plateau (values between 5.5 and 6.5 N/cm²) occurs within a specific range of approximately 0.016% to 0.05% Ca²⁺. Within this "window," the gel's firmness and strength are remarkably stable.

• Brittleness: Remains relatively constant (between 30% and 40%) across a broad range of ion levels, indicating the gel's inherently brittle nature is maintained once gelled.

• Elasticity: Is highest at the very lowest ion concentrations but drops rapidly to a minimal, constant level (~10%) once sufficient ions for effective gelation are present.

  The practical significance of the hardness/modulus optimum is profound for product developers. Formulating within this ionic range provides a buffer against normal variations in raw material ion content (e.g., from water or other ingredients), ensuring consistent final gel texture despite minor batch-to-batch differences. It provides a formulation "sweet spot" for robustness.
