FAQs

Agar vs. Low-Acyl Gellan Gum vs. Kappa Carrageenan: A Comparative Gel Test

Q: What was the purpose of the test?

A: We conducted a comparative test to evaluate the dispersion behavior, gel clarity, texture, and water retention of various hydrocolloids under standardized conditions.

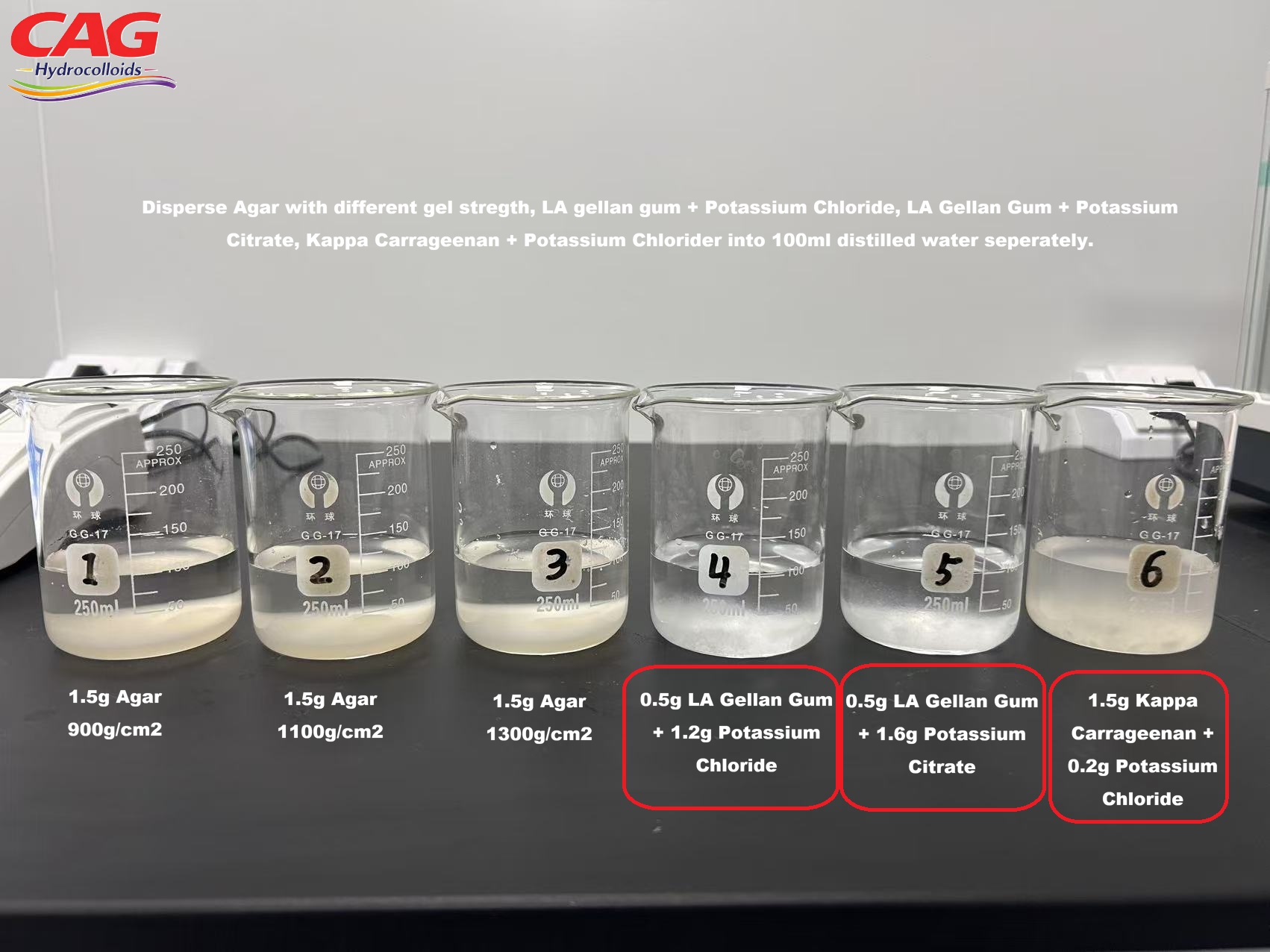

Q: What were the specific samples and preparation methods?

A: Six samples were prepared in 100 ml of deionized water:

• Samples 1–3 (Agar): Three Agar grades with gel strengths of 900 g/cm², 1100 g/cm², and 1300 g/cm². All used a 1.5 g dosage.

• Sample 4 (LA Gellan + KCl): 0.5 g Low-Acyl Gellan Gum + 1.2 g Potassium Chloride.

• Sample 5 (LA Gellan + Potassium Citrate): 0.5 g Low-Acyl Gellan Gum + 1.6 g Potassium Citrate.

• Sample 6 (Kappa Carrageenan + KCl): 1.5 g Kappa Carrageenan + 0.2 g Potassium Chloride

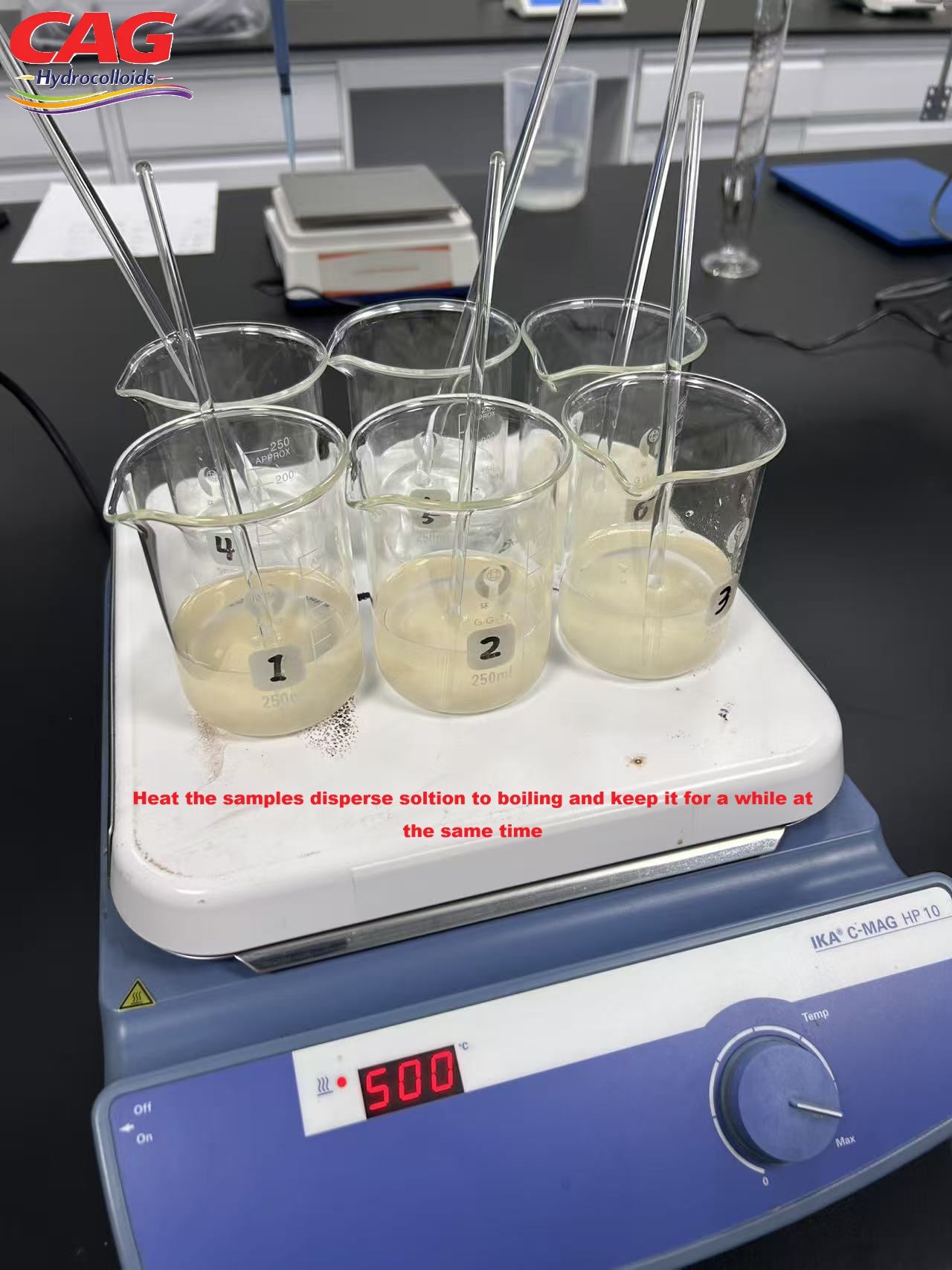

Q: How did the powders disperse in water?

A: Agar dispersed very well in deionized water. In contrast, the Low-Acyl Gellan Gum samples (both with Potassium Chloride and Potassium Citrate) exhibited slight clumping. The Kappa Carrageenan also showed minor clumping when dispersed in the Potassium Chloride solution.

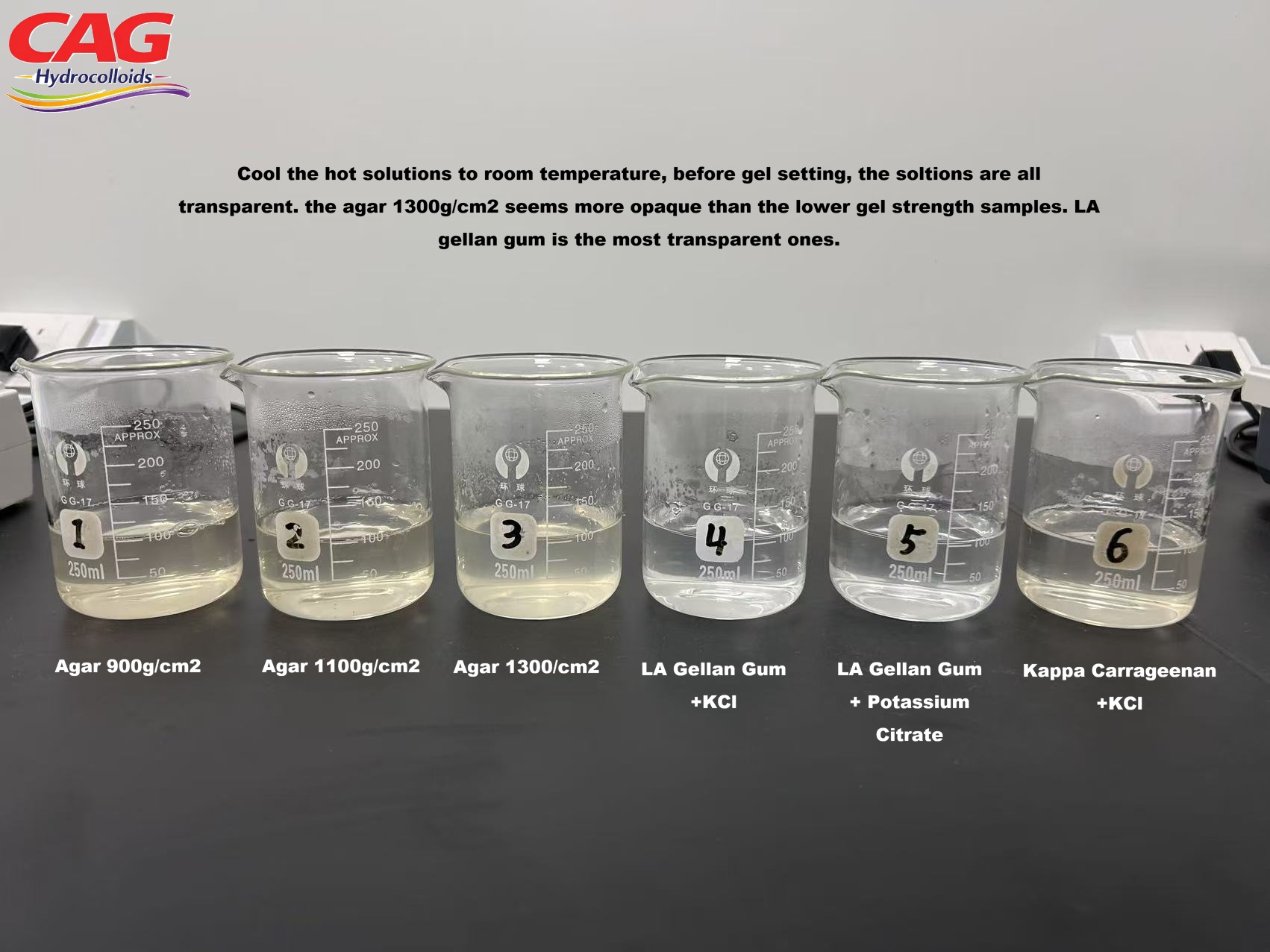

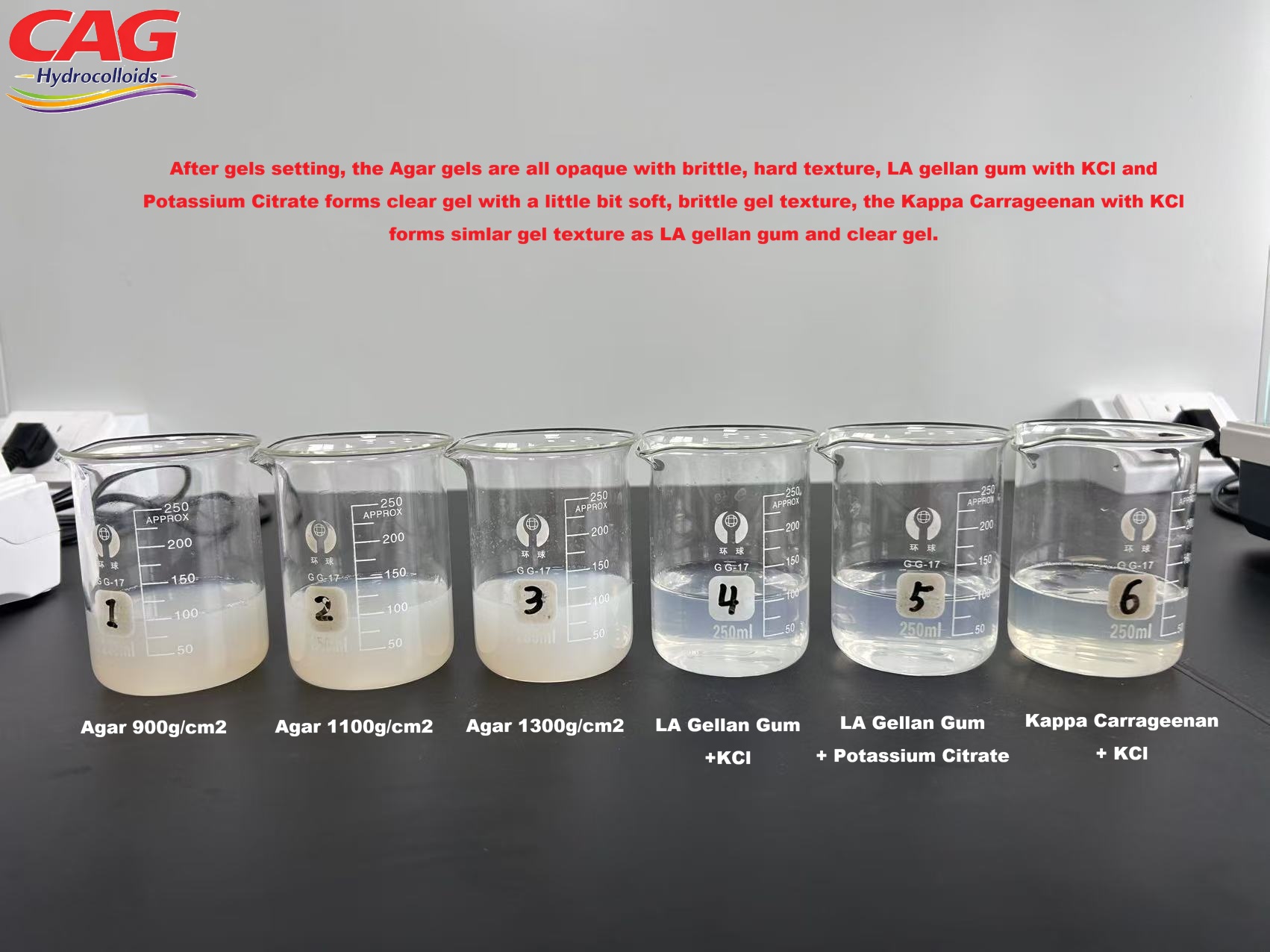

Q: What were the visual and textural differences in the final gels?

A: The Agar gels appeared cloudy and opaque. Conversely, both the Low-Acyl Gellan Gum and Kappa Carrageenan gels were highly transparent. Texturally, the Agar gels were firm and hard. The Gellan Gum gels (with both salts) and the Kappa Carrageenan gel exhibited a slightly elastic texture.

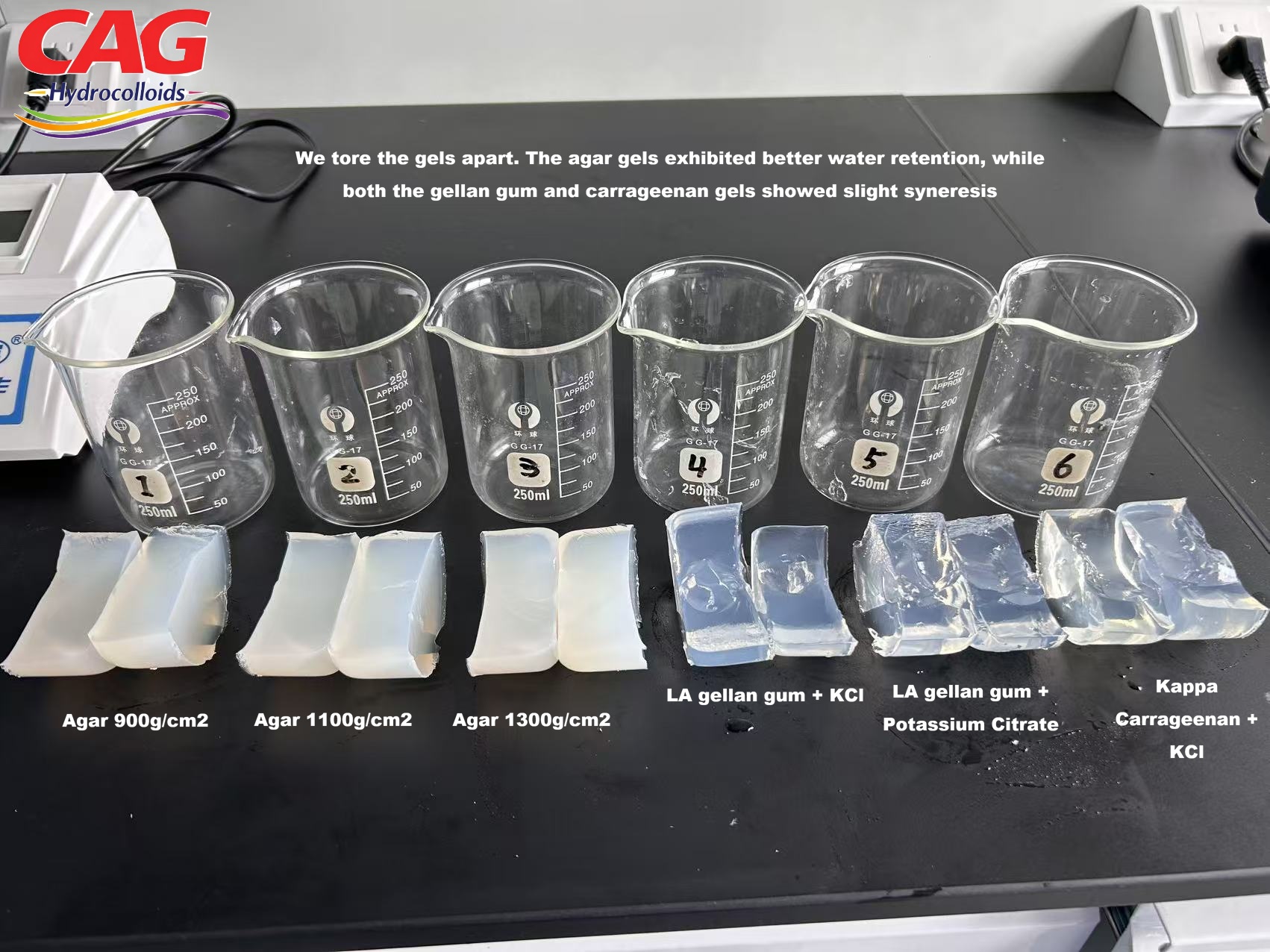

Q: How did the gels perform regarding water retention?

A: Agar demonstrated superior water-holding capacity. When the gels were torn apart, the fragmented Agar pieces showed no signs of syneresis (water weeping). In comparison, both the Gellan Gum and Carrageenan gels released slight amounts of water upon breaking.

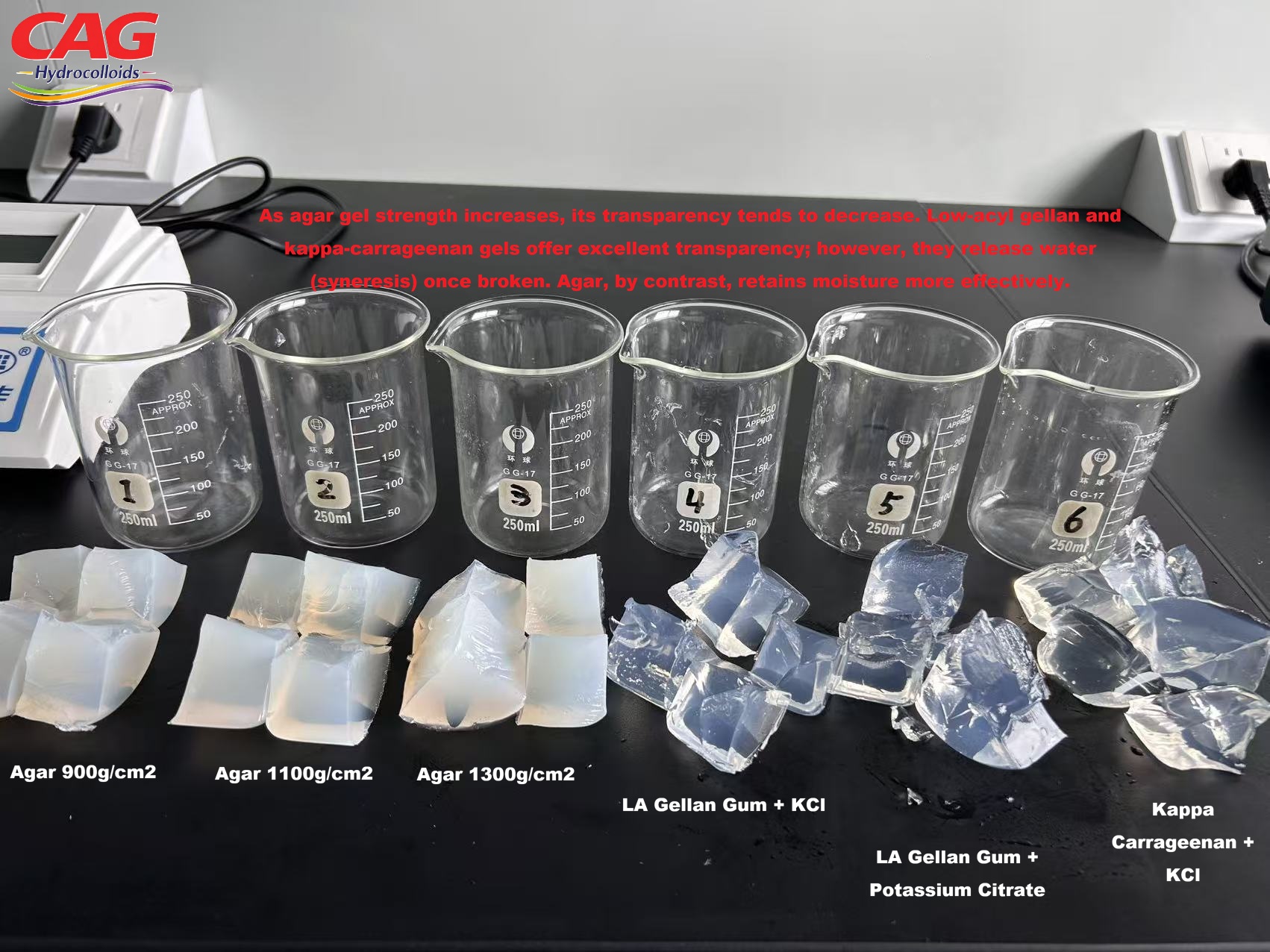

Summary

Higher gel strength in Agar correlates with reduced transparency. While Low-Acyl Gellan Gum and Kappa Carrageenan offer excellent clarity and slight elasticity, Agar remains the superior choice for applications requiring high water retention and a firm, opaque gel structure.
